Hammond XM2/XMc2 Drawbar Module

Postby Mike Bracchi » 27 Sep 2012 13:55

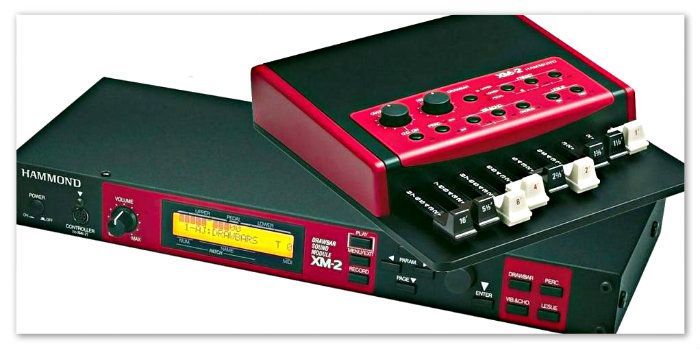

This exciting pro drawbar organ module is powered by Hammond's most advanced VASE3 Digital tone wheel generator. The XM-2 utilizes many of outstanding sounds and features found in the XK-3.

The XM-2 synthesizer is a sound-generator that can reproduce all the unique Hammond organ-sounds using 'Digital Tone-wheels' powered by a double VASEIII-engine. This unit can operate on its own as a module in a studio-environment.


Features
[list=]2 Vase III as Digital Tone-wheel sound generators
Transpose: -6 ~ 0 ~ +6 semitones
Effects: Internal Leslie: On, Fast, Brake, Digital 2 Rotors, Leslie-presets:122,147,710,760,825(adjustable)
Vibrato and Chorus: V1, V2, V3, C1, C2, C3, Upper&Lower, On/off, Speed:5(6,10Hz~7,25Hz)
Digital Overdrive
3 EQ bands
10 reverb programs
5 sustain lengths (Pedal)
28 Patches
4 MIDI templates
CONNECTIONS DC-Input(9v), MIDI In1, In2, Out
Expression Pedal (Phone jack)
Foot switch, Line out L/Mono,R
Headphones, 8-pin Leslie
Dimensions: 396mm(W) x 172mm(D) x 50mm(H)
Weight: 3.5kg[/list]
